WELDMESH FENCING
Robust Security and Versatility: Tymlock's Weldmesh Fences

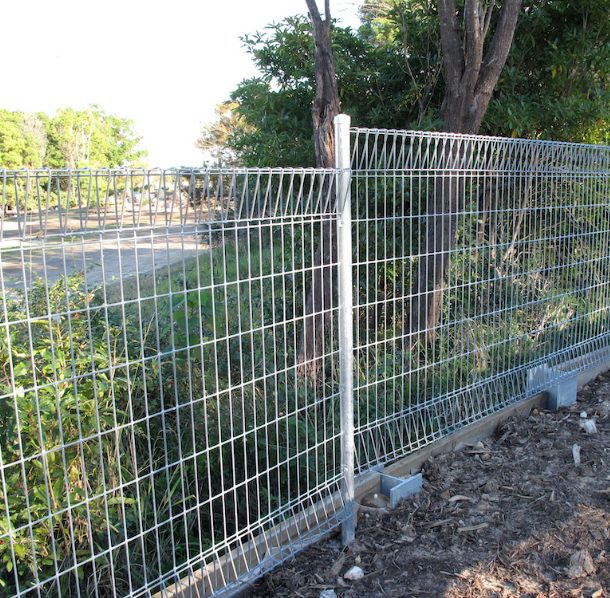

Weldmesh fences, a prominent offering from Tymlock, stand as a testament to strength and security. Comprising welded wire mesh panels, these fences provide a robust barrier while allowing visibility and airflow. Tymlock's weldmesh fences are tailored to various needs, from residential to commercial applications, offering a blend of durability and practicality. These fences are highly resistant to impact and wear, making them suitable for high-traffic areas. With different sizes and customisation options available, you can choose a weldmesh fence that aligns with your security and aesthetic requirements. Trust Tymlock to deliver weldmesh fences that not only safeguard your premises but also offer a long-lasting solution built to withstand the tests of time.
Weldmesh fencing Products

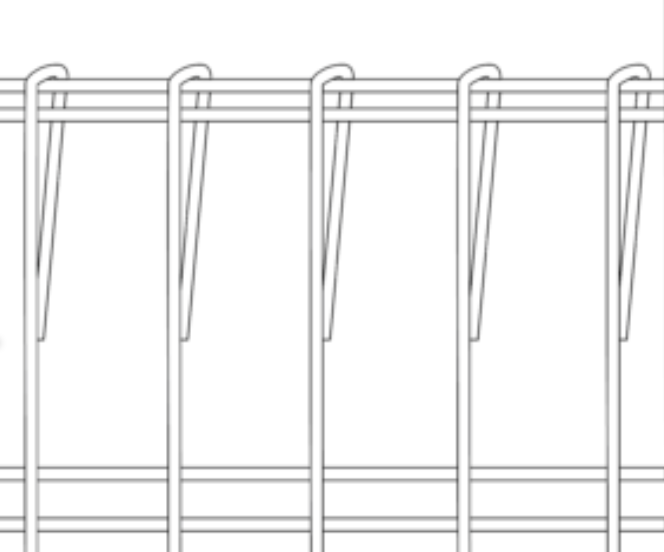

Garden™
Material:
Wire
Application:
Walkways, Machine Guarding, Railways, Schools, Sporting Grounds
Quality:
Meets Australian Standard AS2423 – Coated Steel Wire, Fencing Products for Terrestrial Aquatic and General Use. Manufactured using 5.00mm OneSteel Lifemax™ wire
Finishes:
LifeMax™and Powdercoated™ wire
Design options:
Roll top and bottom
Accessories and fittings:
Optional extras include: post caps, tek screws, latches and hinges, gate fitting packs, touch up paint and much more
Specifications
Garden™

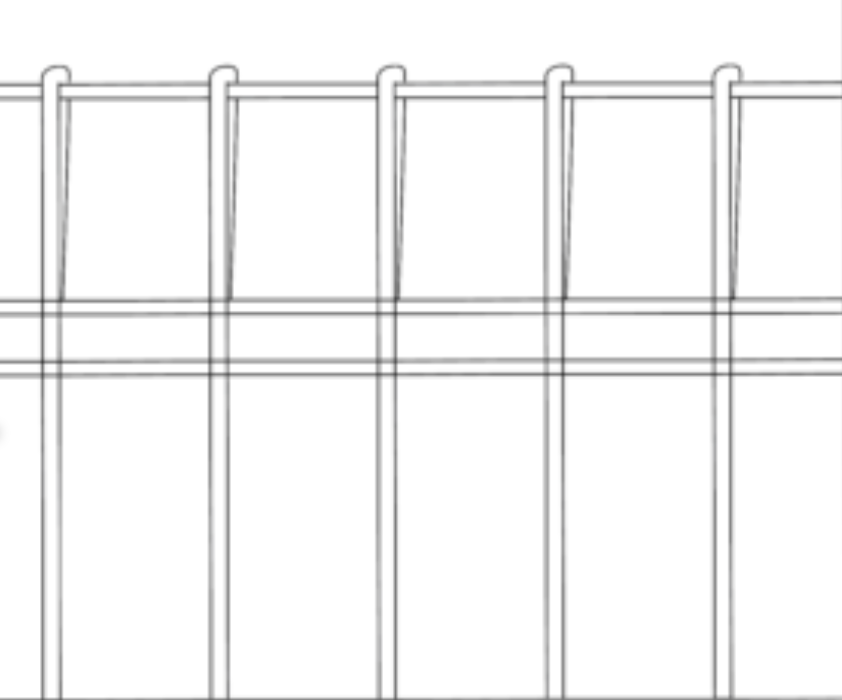

Banksia™
Material:
Wire
Application:
Garden
Quality:
Meets Australian Standard AS2423 – Coated Steel Wire, Fencing Products for Terrestrial Aquatic and General Use.
Finishes:
Galvanised, Powdercoated and Hot Dipped Galvanised
Design options:
Roll top and bottom
Accessories and fittings:
Optional extras include: post caps, tek screws, latches and hinges, gate fitting packs, touch up paint and much more
Specifications
Banksia™
Standard Sheet Sizes
| Panel Width (mm) | 2400 |
|---|---|
| Panel Height (mm) | 910, 1210 and 1570 |
| Vertical Wire Diameter | 4mm or 5mm |
| Horizontal Wire Diameter | 4mm or 5mm |
| Wire Spacing (mm) | 75 x 75 |
Post Specifications
| Inground Post Height | From 1500 to 2000 |
|---|---|
| Flanged Post Height (mm) | From 1000 to 1500 |
| Standard Posts Specs (mm) | 50 x 50 x 1.6 |

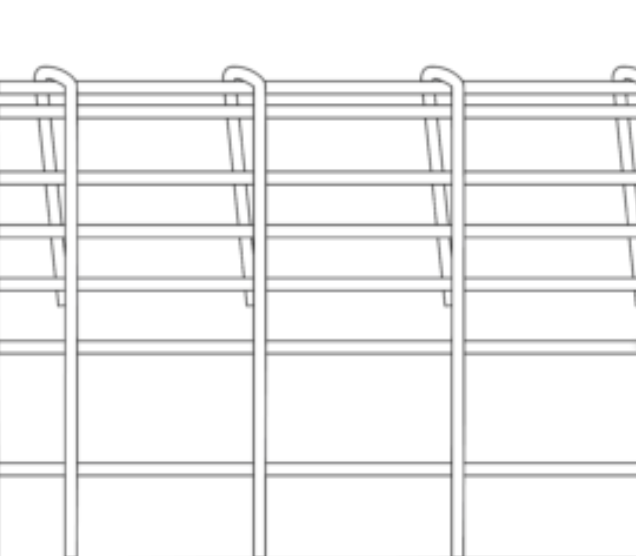

Acacia™
Material:
Wire
Applications:
Garden
Quality:
Meets Australian Standard AS2423 – Coated Steel Wire, Fencing Products for Terrestrial Aquatic and General Use
Finishes:
Galvanised, Powdercoated, LifeMax™and Hot Dipped Galvanised options can be discussed if required
Design options:
Roll top and bottom
Accessories and fittings:
Optional extras include: post caps, tek screws, latches and hinges, gate fitting packs, touch up paint and much more
Specifications
Acacia™
Standard Sheet Sizes
| Panel Width (mm) | 2400 |
|---|---|
| Panel Height (mm) | 910 to 1825 |
| Vertical Wire Diameter | 4mm or 5mm |
| Horizontal Wire Diameter | 4mm or 5mm |
| Wire Spacing (mm) | 50 x 75 |
Posts Specifications
| Inground Post Height | From 1500 to 2500 |
|---|---|
| Flanged Post Height (mm) | From 1350 to 1900 |
| Standard Posts Specs (mm) | 50 x 50 x 1.6 |
| Options may vary from state to state |

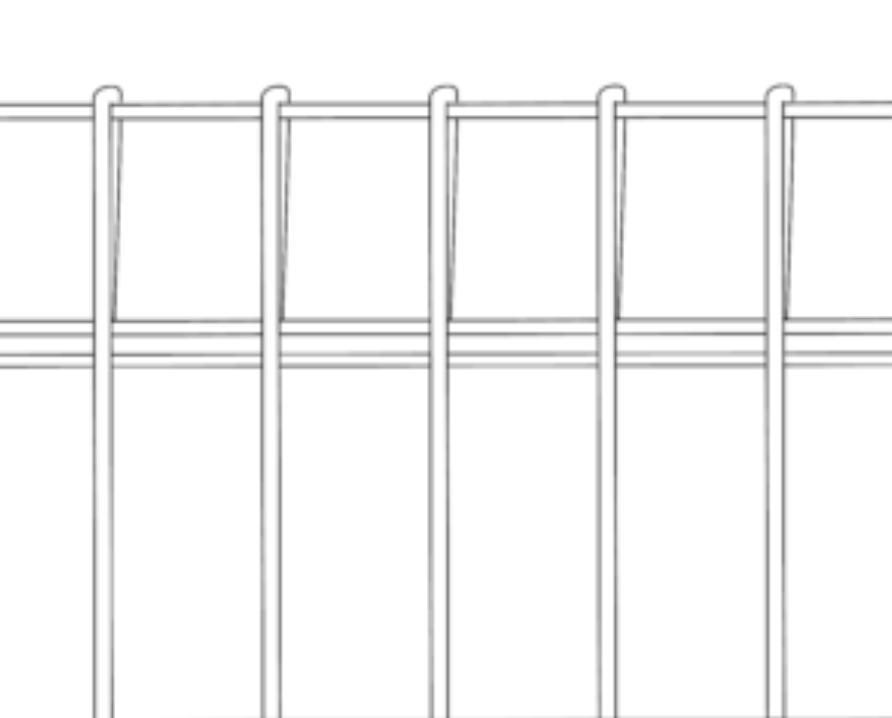

Wattle™
Material:
Wire
Applications:
Garden or Pool
Quality:
Tested by a NATA accredited Laboratory. Pool fencing complies with Australian Standard 1926.1-201
Finishes:
Hot Dipped Galvanisedand Powdercoated
Design options:
Roll top and bottom
Accessories and fittings:
Optional extras include: post caps, tek screws, latches and hinges, gate fitting packs, touch up paint and much more
Specifications
Wattle™
Standard Sheet Sizes
| Panel Width (mm) | 2400 |
|---|---|
| Panel Height (mm) | 1270 to 1520 |
| Vertical Wire Diameter | 8mm |
| Horizontal Wire Diameter | 5mm |
| Wire Spacing (mm) | 75 x 75 |
Posts Specifications
| Inground Post Height | From 1900 to 2200 |
|---|---|
| Flanged Post Height (mm) | From 1350 to 1700 |
| Standard Posts Specs (mm) | 50 x 50 x 1.6 |
Get in Touch
Want to learn More?
Our team of experts is ready to address any questions you may have regarding our weldmesh fencing solutions. Contact us by clicking the link below and our team will get back to you as soon as possible,
